Traction ratio: 1:1、2:1
Rated capacity: 1050、1200、1350、1600、 2000kg
Rated elevator speed: 3、3.5、4m/s
Max. lifting height: 200m
Max. shaft load: 15000kg
Applicable converter: 3 phase 400V
Brake voltage: DC200V for Brake opening,
and DC100V for brake holding
Number of motor poles: 20 poles

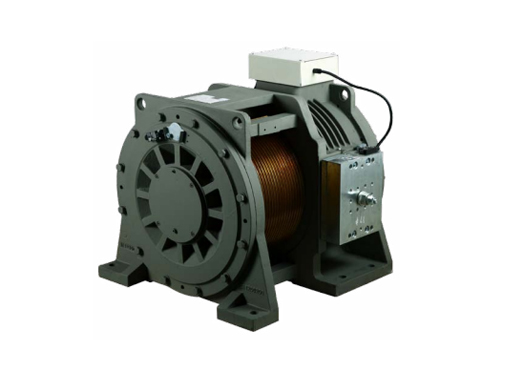

This series of permanent-magnet synchronous gearless traction machines adapts double wrap, and the housing and support structure are integrated structure. So it has compact construction, with easy installation and maintenance, it's can bear high radial loads. Unique external rotor design is provided, low-noise block brake is mounted on both sides of the housing and operates with high sensitivity,high efficiency and good stability.
